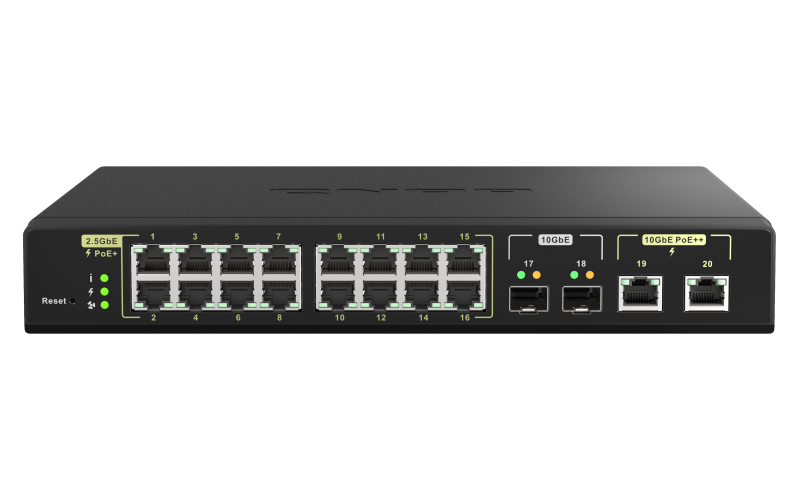

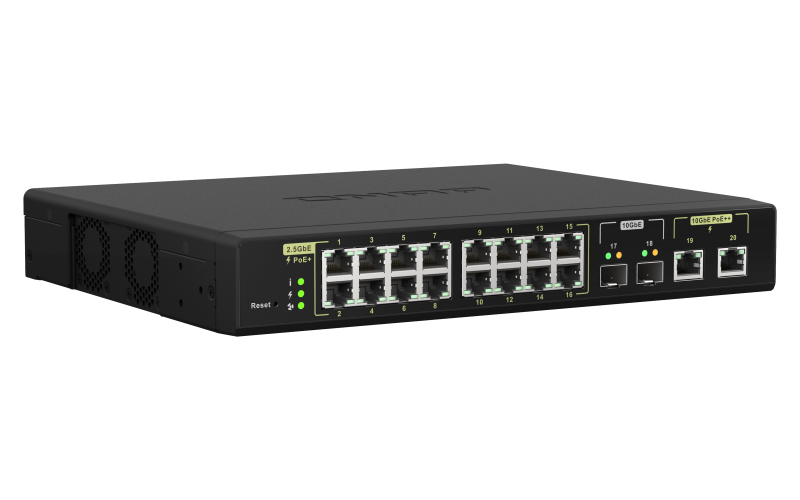

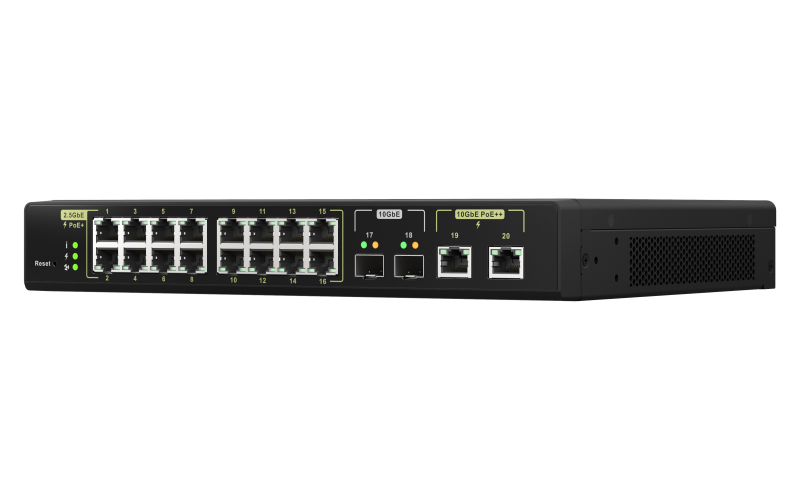

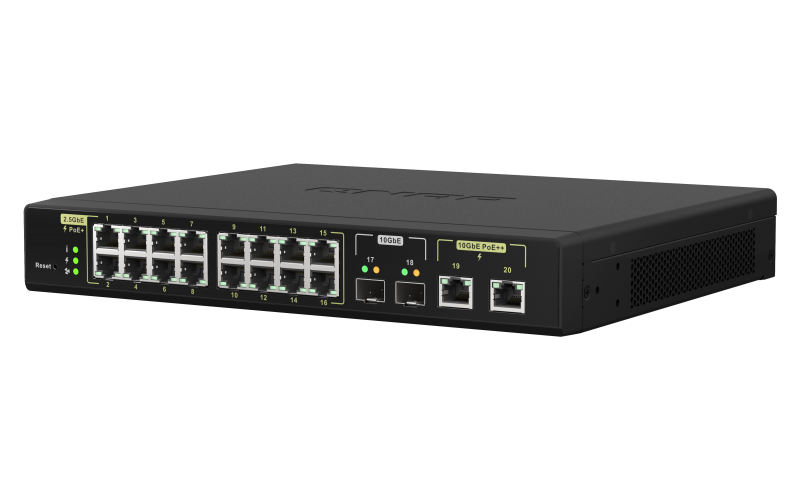

QNAP QSW-M2116P-2T2S
90-watt 10GbE PoE++ and 30-watt 2.5GbE PoE+ Managed Switch for the
Wi-Fi 6 Generation
Microchip VSC7448-02, 4Gb DDR3, 16 port of 2.5Gbps port with 802.3at (30W), 2 10BASE-T port with 802.3bt(90W), 2 10GbE SFP+ port, Rackmount, Managed. 2 10BASE-T 5-speed auto negotiation (10G/5G/2.5G/1G/100M) port with 802.3bt(90W), 2 10GbE SFP+ port
Our Price: Request a Quote
Click here to jump to more pricing!
Package Content
- QNAP QSW-M2116P-2T2S Switch
- Power cord
- Rackmount kit
- Rubber feet
- Quick Installation Guide
Overview:
The QNAP QSW-M2116P-2T2S is a L2 PoE Managed Switch with sixteen 30-watt 2.5GbE PoE+ ports, two 90-watt 10GbE PoE++ ports. Offering a total power budget of 380 watts and two 10GbE SFP+ ports, the QSW-M2116P-2T2S not only enables a high-speed and high-power PoE network infrastructure for Wi-Fi 6 Access Points and Routers, but also provides backbone network uplinking capabilities. The QSS, QNAP Switch System with user-friendly web interface, helps IT administrators efficiently control Layer 2 and PoE networks, including wireless APs, IP Cameras and Digital Signage, core Switches and Servers. The QSW-M2116P-2T2S offers SMBs a cost-optimized and centrally managed LAN deployment solution.
Compliant with the IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards. Offers 2-port 90-watt and 16-port 30-watt PoE capabilities. Can supply a total power budget of 280 watts to meet the demands of high-powered devices (PDs).
Compatible with 10GBASE-T and 5GBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M), the QSW-M2116P-2T2S offers higher transmission speeds when used with existing cables.
Two 10GbE SFP+ ports can connect to the Internet, Routers, core switches, and NAS to fulfill the high bandwidth demands of backbone network or data centers.
Offers a user-friendly web interface to help IT administrators efficiently control Layer 2 and PoE networks. Additionally, the overview dashboard and graphical statistics analysis show IT administrators all switch information and powered devices at a glance, making central management of high-power devices intuitive and easy.
Provides comprehensive Layer 2 management features (such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN) for IT administrators to efficiently control network bandwidth and enhance security via the user-friendly switch management web interface.
QSS (QNAP Switch System) helps administrators update firmware with just one click, ensuring network security.
Features:
10GbE 90-watt PoE Switch for Wi-Fi 6 APs & Routers
The QSW-M2116P-2T2S breaks through bandwidth limitations cabled and wireless networks to enhance your storage and access experience. With two 10GbE 90-watt and sixteen 2.5GbE 30-watt PoE ports, the QSW-M2116P-2T2S supplies up to a total power budget of 280 watts to meet the demands of high-power Wi-Fi 6 APs. With two 10GbE SFP+ ports for backbone network uplinking capability, the QSW-M2116P-2T2S provides an ultra-high-speed Wi-Fi 6 wireless network infrastructure solution for small-to-medium-scale businesses, hotels, and stores
High PoE Capability– up to 90W
The QSW-M2116P-2T2S is compliant with the IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards, offering 2-port 90-watt and 16-port 30-watt PoE capabilities. The QSW-M2116P-2T2S can supply a total power budget of 280 watts to meet the demands of many high-power devices (PDs) (such as 4K IP cameras, wireless APs, IP phones, LED lights, and digital signage).
Faster PoE and Backbone network transmission
QSW-M2116P-2T2S has two 10GbE ports and sixteen 2.5GbE PoE ports for connecting various high-speed powered devices. Two in-built 10GbE SFP+ ports can serve as uplink ports to the Internet and core networks or simply be connected to routers and LAN Fiber switches, improving LAN and WAN transmission efficiency. The switching capacity of QSW-M2116P-2T2S is 160Gbps, guaranteeing the full potential of each port.
Intelligent PoE Functions for Efficient, Centralized PD Management
The QSW-M2116P-2T2S supports intelligent PoE management functions, including scheduling, power supply prioritization, and power enabling and disabling. You can obtain real-time network connection status and power consumption information of PDs and configure PDs simultaneously to promote an energy-saving PoE network.
Comprehensive Layer 2 Management Features
The QSW-M2116P-2T2S provides comprehensive Layer 2 management features such as VLAN, LACP, and LLDP for you to efficiently control the network through IP grouping and bandwidth management. The QSW-M2116P-2T2S also has powerful security functions, including IGMP Snooping, static MAC, QoS, and Wake-on-LAN, which are suitable for simple networking environments and easy deployment.
| Port Management | VLAN | Port Trunking | QoS |
|---|---|---|---|
|
|
|
|
| IGMP | Security> | Management | Advanced Applications |
|
|
|
|
QSS: User-Friendly Switch Management System
The QSW-M2116P-2T2S uses the QNAP Switch System (QSS), a user-friendly web interface networking management system to help IT administrators efficiently control Layer 2 management and PoE networks. Additionally, the overview dashboard and graphical statistics analysis area displays all the information about the switch and PDs at a glance, making centralized management of powered devices intuitive and easy for administrators.
Overview Dashboard
View real-time information about switch CPU usage, PoE power consumption, and port status.
Port Management
View port status, port packet statistics, and configure port speed.

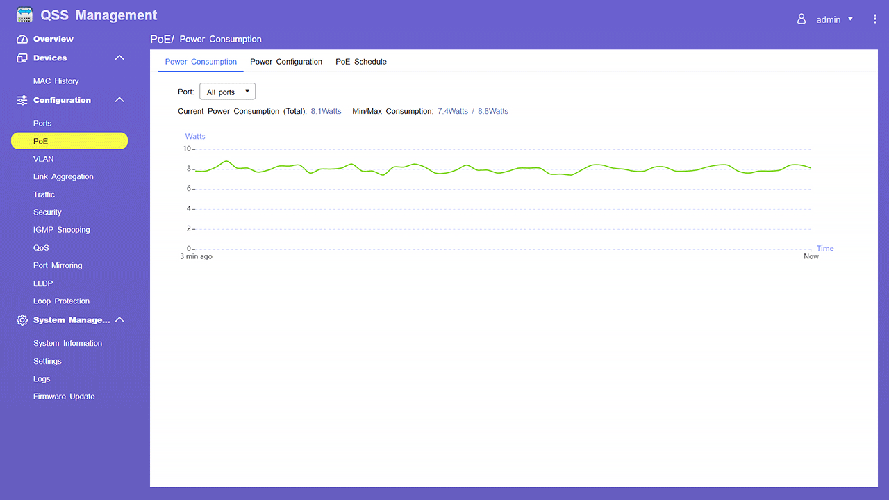

PoE Management
Manage PoE scheduling, PoE power supply prioritization, and PoE enabling and disabling.

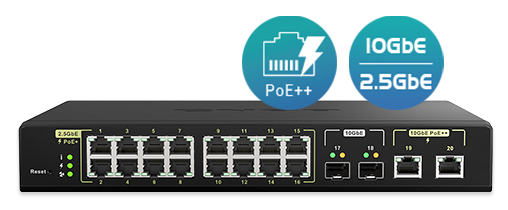

Fan Failure LED for Efficient IT Maintenance
Designed for server rooms and computer rooms, the QSW-M2116P-2T2S features a standard 1U rackmount and a Fan failure LED to help IT administrators with convenient installation and efficient maintenance.
QNAP High-speed and High-power PoE Switch for Wi-Fi 6 Generation

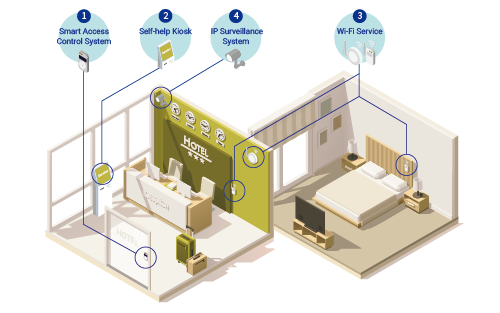

New Wi-Fi 6 experience for Hotels
Hotel staff can connect Wi-Fi 6 wireless APs and routers with the QSW-M2116P-2T2S to provide their customers with an all-new high-speed Wi-Fi 6 experience. The QSW-M2116P-2T2S can also supply PoE to powered devices of IP surveillance systems, Smart Access Control Systems and Self-help Kiosks.
The QSW-M2116P-2T2S provides…
- Smart Access Control System: Up to 2.5GbE 30-watt PoE capabilities and 2.5GbE network transmission to transfer customer check-in data in real time.
- Self-help Kiosk: Up to 2.5GbE 30-watt PoE capabilities, enabling data connection for self-help kiosks and digital signage.
- Wi-Fi Service: 30–90-watt 10GbE PoE capabilities for Wi-Fi 6 wireless access points (WAPs) or routers.
- IP Surveillance System: 30–90-watt PoE capabilities and up to 10GbE speeds to 4K PTZ and Fisheye IP cameras.

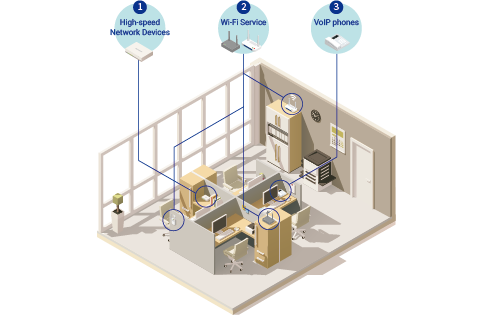

Deploy Wi-Fi 6 for Mobile Offices
High speed mobility is the key to business growth. The QSW-M2116P-2T2S not only helps businesses to build a high-speed wireless LAN infrastructure, but also provides backbone network uplinking capabilities.
The QSW-M2116P-2T2S provides…
- High-speed Network Devices: Use 10GbE SFP+ ports to connect to the Internet, 10GbE Routers, core networks, and other devices. QSW 10GbE switches and 10GbE NAS can empower applications like virtualization, 4K video editing and file sharing.
- Wi-Fi Service: 30–90-watt 10GbE PoE capabilities for Wi-Fi 6 wireless access points (WAPs) or routers.
- VoIP phones: supply 30-watt 2.5GbE PoE power to VoIP phones for deploying a low-latency enterprise SIP IP Telephony system.

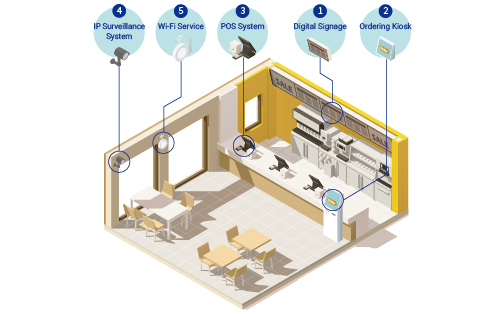

Wi-Fi 6 for Smart Retail
High-speed wireless networking, IP surveillance and Thin Client provides new business opportunities for smart retailers. The QSW-M2116P-2T2S can supply power and intelligently manage all the powered devices including wireless APs, IP cameras, EPOS, and digital signage.
The QSW-M2116P-2T2S provides…
- Digital Signage: 90-watt PoE capabilities and 10GbE connectivity.
- Ordering Kiosk: 90-watt PoE capabilities and 10GbE connectivity for transferring customer order details.
- POS System: 30-watt PoE capabilities and 10GbE connectivity for transferring customer sales details.
- IP Surveillance System: 30–90-watt PoE capabilities and up to 10GbE speeds to 4K PTZ and Fisheye IP cameras.
- Wi-Fi Service: 30–90-watt 10GbE PoE capabilities for Wi-Fi 6 wireless access points (WAPs) or routers.
Hardware Specifications:
| QSW-M2116P-2T2S | |
|---|---|
| Management Type | Web Managed |
| Number of Ports | 20 |
| 10GbE SFP+ | 2 |
| 10GbE BASE-T (RJ45) | 2 |
| 2.5GbE (RJ45) | 16 |
| Total PoE Ports | 18 |
| PoE PSE (802.3af, 15.4W) | Port 1-16 |
| PoE+ PSE (802.3at, 30W) | Port 1-16 |
| PoE++ PSE (802.3bt, 90W) | Port 19-20 |
| PoE Power Output | Port 1-16 (30W), Port 19-20 (90W) |
| Total PoE Power Budget | 280W |
| Power Supply Description | Internal Power Supply Unit |
| Max. Power Consumption | 350W |
| Input Power Type | AC |
| Input Voltage Range | 100-240VAC, 50/60 Hz |
| MAC Address Table | 32K |
| Total Non-Blocking Throughput | 80Gbps |
| Switching Capacity | 160Gbps |
| Management Interface | Web |
| Console | RJ45 |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | |
| Fan | PWM double ball bearing fan x 2 |
| Supported Standards |
IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3an 10G BASE-T IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af/at/bt Power-over-Ethernet (PoE) |
| Form Factor | Rackmount |
| LED Indicators |
Per Port: Speed/Link/Activity Per System: Status/PoE/Fan |
| Buttons | Reset button |
| Dimensions (HxWxD) | 43.5 x 285 x 234.8 mm |
| Weight (Net) | 4.59 lbs |
| Weight (Gross) | 4.7 lbs |
| Operating Temperature | 0˚C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~95% Non-condensing |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | CLASS A |
| Jumbo Frames | 9K |
| Warranty | 2 Years |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS. Designs and specifications are subject to change without notice.
