QNAP TEC-2N16 (Enclosure)
GM-1000 enclosure: Supports two NAS nodes for greater
flexibility
GM-1000 system enclosure
Our Price: Request a Quote
Want to build a custom bundle? Contact us!
Click here to jump to more pricing!
Overview:

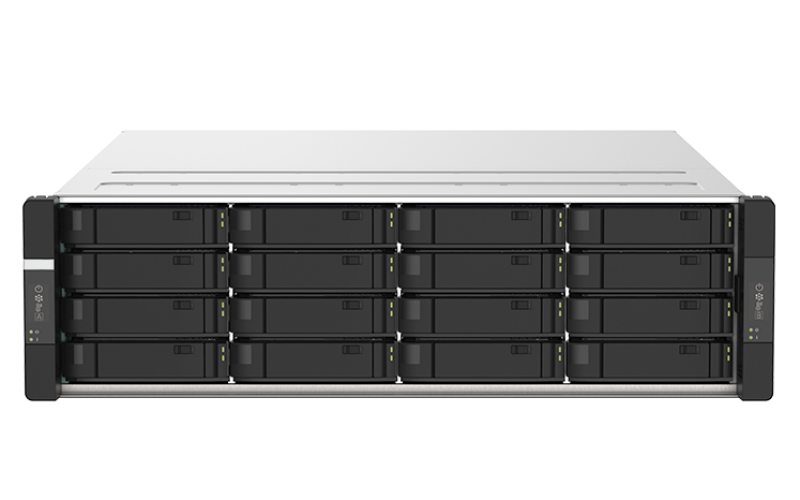

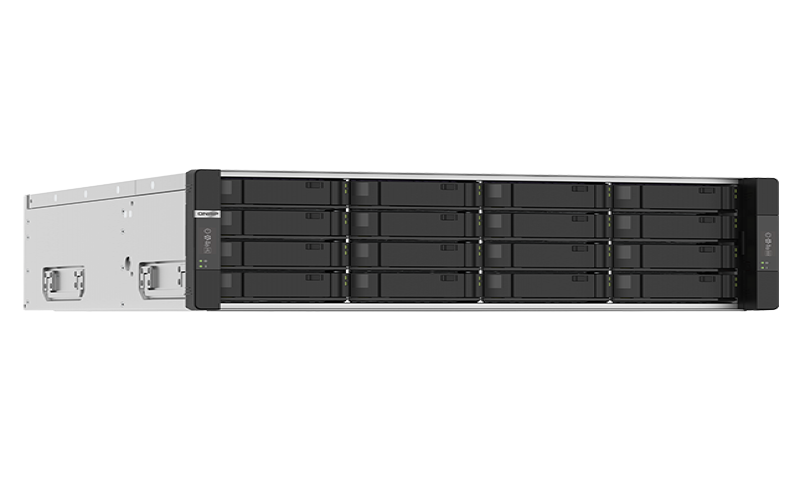

The TEC-2N16 is a 3U rackmount chassis designed for the GM-1000 system. By housing two independent NAS nodes, the TEC-2N16 minimizes costs and provides greater flexibility in upgrading and maintaining your IT environment to meet future performance, backup, and application requirements.
Available Models
-
TEC-2N16-770W-
3U rackmount, 16 x 3.5-inch SATA drive bays, 2 x 770W power supplies
An enclosure that houses two replaceable NAS nodes.
A 3U chassis with 16 drive bays (each node supports eight 6 Gb/s SATA drives).

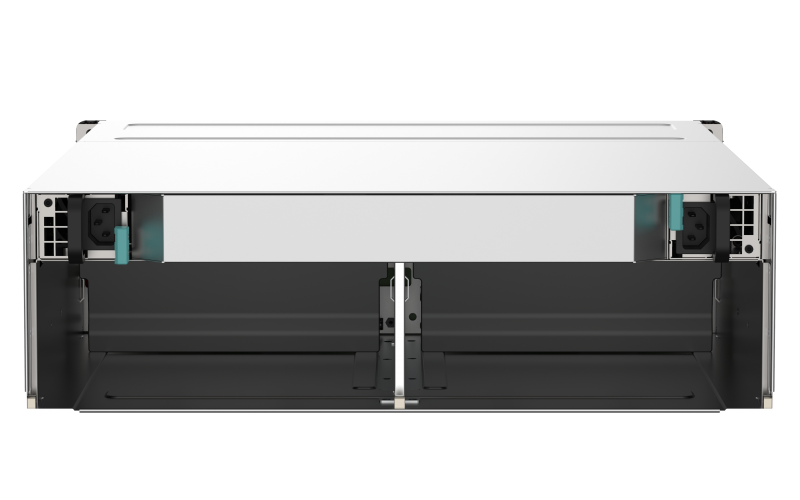

770W redundant power supply, shared by two NAS nodes for reliable 24/7 operation.
Features:
Economic and space-saving design for dual NAS nodes

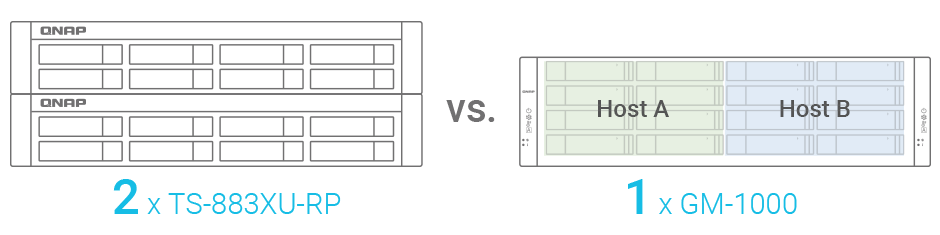

The TEC-2N16 is a 3U chassis with sixteen 3.5-inch drive bays. Compared with deploying two similar 2U 8-bay rackmount NAS, the TEC-2N16 saves rack space and system costs. The support for replaceable NAS nodes also simplifies upgrades and maintenance.
Build a dual NAS, double-performance storage solution
Install two NAS nodes in the TEC-2N16 to enjoy a cost-effective high-performance backup solution and cloud storage gateway applications.
| SKU | Enclosure | NAS Node | Processor | Memory |
|---|---|---|---|---|
| GM-1001 | 1 x TEC-2N16-770W | 2 x TNS-h1083X-E2234-8G | Intel Xeon E-2234 | 8 GB (2 x 4GB) |
| GM-1002 | 2 x TNS-h1083X-E2236-16G | Intel Xeon E-2236 | 16 GB (2 x 8GB) |

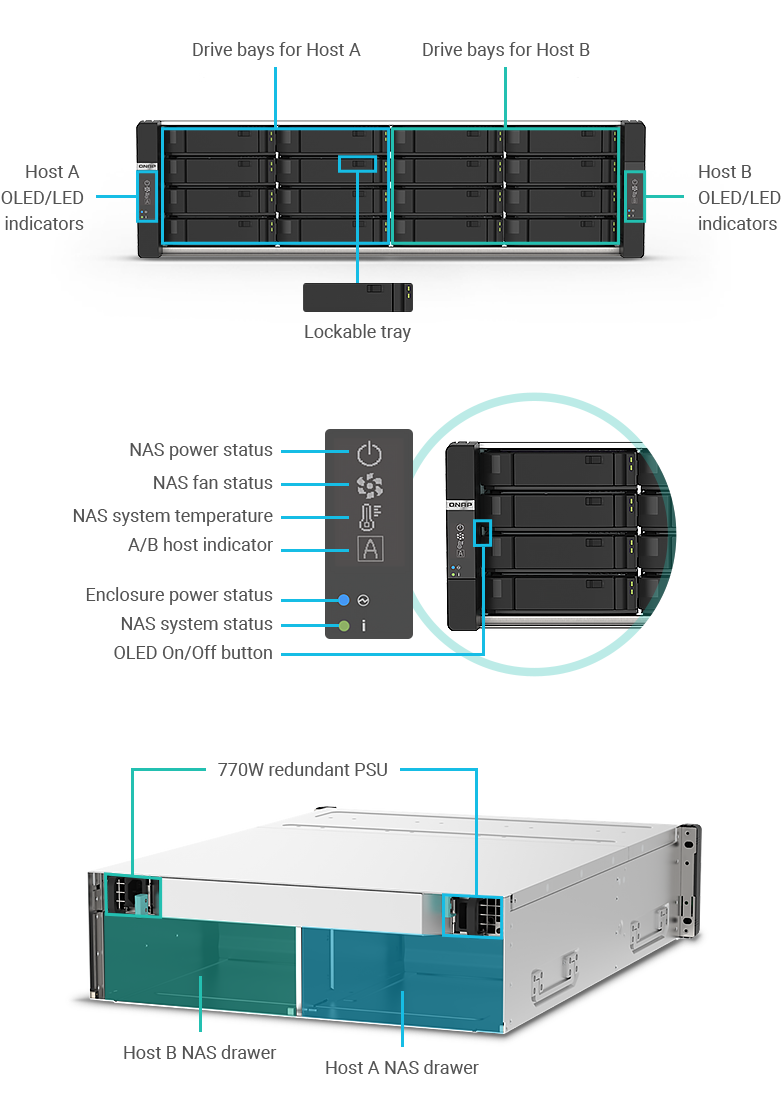

TEC-2N16 enclosure specifications
Pricing Notes:
- Pricing and product availability subject to change without notice.
